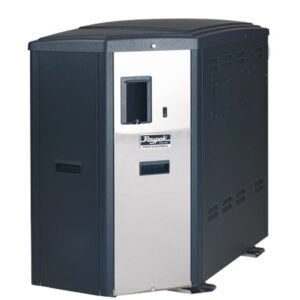

Raypak 399K BTU ASME Propane Gas Residential Pool & Spa Heater (S-R410-EP / 014281)

The Raypak X94 Professional series pool heater is a new product created especially for commercial buildings including condos, hotels, motels, schools, parks, and upscale private pools. Additionally, it is the ideal heater for harsh coastal climates where endurance is tested by salt air.

A digital controller that is so sophisticated yet simple to use, the Raypak 014281 features 94% efficiency, an ASME code stainless steel marine-grade heat exchanger, and an electronic, intermittent direct spark ignition.

• 94% Efficiency
• ASME Code Stainless Steel Marine-Grade Heat Exchanger, stamped for 80 PSIG and National Board registered.
• 75 lb. Pressure relief valve and T&P gauge
• External bypass for high flow rates (up to 125 GPM)
• Indoor/outdoor construction
• 2” PVC Slip inlet/outlet connection
• 115VAC 60Hz 1 Ph Power supply
• Electronic, Intermittent Direct Spark Ignition (DSI)
• Digital display with diagnostics and 7-day time clock
• Air-fuel ratio combustion system provides a modulating response to changing needs
• Condensate Drain port, ½” PVC
• Natural gas or propane
• Low NOx, meets SCAQMD rule 1146.2
• Requires Cat IV Venting: PVC, CPVC, Dura-Vent Polypro, or stainless steel

SPECIFICATIONS:

Phase: 1-Phase

Department: Heaters

BTUH Input: 399000

Cabinet Depth: 35-1/2 Inch

Cabinet Height: 34-1/8 Inch

Cabinet Width: 20-3/16 Inch

Control Type: Digital Electronic

Elevation: 0 – 4500 ft

Flow Rate: 40 to 125 gpm

Flue Diameter: 4 Inch

Frequency Rating: 60 Hz

Gas Connection: 3/4 Inch NPT

Gas Type: Liquid Propane

Headers: Super-Austenitic Stainless Steel

Item: Condensing Pool Heater

Model Number: S-R410-EP

Standards Approvals: ASME Certified

Tubing Material: Super-Austenitic Stainless Steel

Voltage Rating: 120/24 V

Water Connection: 2 Inch NPT

Weight: 300 lbs.

Limited Warranty: 3 Year Parts and Labor

WHAT’S IN THE BOX:

1 x Raypak Residential Pool & Spa Gas Heater -S-R410-EP ASME-014280- 399,000 BTUH
